The decisions to make are the type of housing (straight exit or turned 90 degrees), the connection method (25pin for industrial use or USB for direct connection to a PC) and the focal distance of the scanner from the image.

The Matrix 200™ has powerful decoding libraries including common 1D, 2D, Postal, Stacked symbologies and DPM (Direct Part Marking) applications. There is no need for additional software libraries in case of poor code quality, The Matrix 200™ has the capability to work in variable reading conditions and has excellent performance in applications where high throughput is required.

The Matrix 200™ is compact and is ten times smaller than the Matrix-2000™. It's available in two types, straight reading window models (50x45x25 mm = 1.97x1.77x0.98 in) and 90° reading window models (54x45x32 mm = 2.12x1.77x1.26 in).

Dimensions

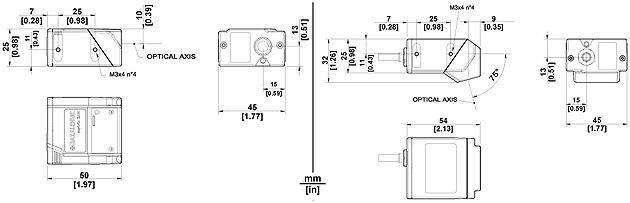

Matrix 200™ is available with Direct and 90degrees models. Each one of these types has different dimensions. The Direct one (technical labels 21x-1x0) has the following clutter: 50 x 25 x 45 mm (1.97 x 0.98 x 1.77 in), whereas 90degrees one (technical labels 21x-0x0) has these dimensions: 54 x 32 x 45 mm (2.12 x 1.26 x 1.77 in).

These compact dimensions, straight and 90 degree reading window models, allow flexible mounting and positioning in narrow spaces, minimizing overall dimensions.
Matrix 200™ is the only imager in the market place offering 2 models (straight and 90 degree reading window) to better fit inside the mechanical constraints.

Weight
There are two different case for the Matrix 200™ models, but all have the same Weight: 60g. (2.1 oz.), without cable.

The powerful Ease of Use features of the Matrix 200™ provide an overall setup time reduction and require no particular technical skills. The X-PRESS™ HMI makes installing and maintaining the Imager very easy: it has the same setup process of all the new Datalogic technology products.

Matrix 200™ units equipped with a USB port allows direct connection to a PC with no need of external power supply. The unit is supplied with certified port drivers and provides Fast and Efficient data or image transfer.

Communication Interfaces
Matrix 200™ is the only ultra compact imager in the market offering 3 independent communication interfaces: Auxiliary RS232/Main RS232/RS485, ID-NET™, or USB.
The RS232 + RS232/RS422/RS485 can work up to 115.2 Kbit/s. Embedded high speed ID-NET™ communication interface allows efficient data collection and simplifies network wiring and it can work up to 1Mbps. USB interface allows direct connection to a PC with no need of external power supply and assures a transmission speed up to 921.6 Kbit/s.
In addition, extended fieldbus connectivity is available through the CBX Line.

Connectivity Modes
With this Imager there are 4 different modes to connect devices, each ones depends on the function that you want to create. Pass Through configuration, Master/Slave network, Multiplexer, USB Point To Point.

Digital Inputs (only 25 PINs models)
There are two inputs available on the reader, which are programmable via SW VisiSet™. For more information refer to the VisiSet™ Help On Line.

Digital Outputs (only 25 PINs models)
Two outputs are available two separate outputs and both signals are fully programmable by the user. They are typically used either to signal the data collection result or to control an external lighting system. For more information refer to the Digital I/O folder in the VisiSet™ Help On Line for further details.

Device Programming
The users can manage the Matrix 200™ in 2 ways. X-PRESS™ Human Machine Interface is the simplest programming mode, and it doesn’t require a PC connection, whereas the Windows™ based SW (VisiSet™) has more technical choices and controls the reader via serial or USB link.

User Interface
The intuitive X-PRESS™ Human Machine Interface makes installation and maintenance easier than ever thanks to a five LED bar graph and the multi-function key providing immediate access to relevant functions such as “Aiming” (for optical aiming system activation), “Setup” (for automatic imager calibration), “Learn” (for automatic code setting), “Test Mode” (for bar graph activation).
The aiming system is based on a Blue Ring indicating the centre of the reading area.
Thanks to the Datalogic patented system, a Green Spot is applied to provide immediate Good Read feedback directly on the target.

The Matrix 200™ is suitable for industrial applications thanks to it's IP65 protection class, 10 - 30VDC power supply range, and 50°C temperature rating. The versions with the Electrostatic dissipative housing (ESD Safe plated version), are designed for PCB assembly, electronic components manufacturing and applications where ESD restrictions are required.

Operating Temperature
The Matrix 200™ is perfect for working in Industrial Plants, and for this reason has a large Operating Temperature range from 0 to 50 degrees C (32 to 122 degrees F).
Otherwise it can be stored in a wide set of Storage Temperature: -20 to 70 degrees C (-4 to 158 degrees F) and with a maximum Humidity level equal to 90% (non condensing).

Protection Class
The Protection Class specification is very important in most cases. Matrix 200™ respects the IP65 standard and it's the best reader for Industrial applications, made of rugged full metal construction.

Power Supply
Matrix 200™ have two supply ranges, these depend on the type of the output connector. For the Matrix 200™ 25 PINs version, it goes from 10 to 30 VDC, instead for the Matrix 200™ USB version is about 5 VDC.

Power Consumption
Range of consumption sweep from 2.0 W (as typical) to 2.5 W. The USB model doesn't need an external power supply unit.

Optical Features
Matrix 200™ applies a new optical system ensuring wide Field of View at relative short reading distances, which are typically requested in Manufacturing and OEM applications. The optic contains a CMOS Sensor. Moreover, this sensor gives a Wide Video Graphic Array (WVGA) resolution, which in particular has a 752 x 480 (horizontal x vertical) pixel matrix format.
Matrix 200™ reads from 40mm up to 190mm on 0.5mm (20mils) 2D codes. Ultra high-density 2D codes can be read up to 0.076mm (3mils) satisfying for example applications in Electronics industry.
Advanced embedded lighting system generates uniform illumination pattern that is a key factor to acquire high quality images and to provide excellent reading performance in demanding conditions.
The well-defined illumination pattern gives to the user an intuitive feedback about the covered reading area.

Frame Rate
The image sensor can work up to 60 frames/s acquisition rate and dynamic reading capability, together with powerful decoding libraries provide excellent performance on a wide range of code symbologies as well as damaged and low quality codes.
Reducing the windowing only at the Region Of Interest, Matrix 200™ can reach higher frame rates, satisfying applications with high throughput, moreover, the advanced internal lighting system ensures uniform illumination in the complete field of view, and high reading performance in moving applications at speeds up to 2.0 m/sec (measured on 0.25mm code resolution with MATRIX 200™ 211-XXX reader models).

Reading Window
Beside the standard Direct Window, Matrix 200™ is available with a 90 degrees Reading Window. This is a great option that gives more flexibility and yields Matrix 200™ clever for several applications.

Reading Angles
Matrix 200™ can read 1D and 2D barcodes with a Maximum Pitch between - 35 degrees and + 35 degrees ; moreover it have a Tilt angle range of 0 - 360degrees .

Readable Symbologies
Matrix 200™ is a multiple barcode reader, in fact it’s able to recognize the following 1D and Stacked code: IL 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro PDF417, Pharmacode, GS1 DATABAR (RSS) family, and many more.

Code Quality Verification
The Matrix 200™ ensures different Quality Codes: ISO/IEC 16022 (Data Matrix), ISO/IEC 18004 (QR Code); ISO/IEC 15415 (Print quality test specifications for 2D codes); ISO/IEC 15416 (Print quality test specifications for linear codes); AS9132A (Data Matrix Quality Requirements for Parts Marking); AIM DPM (Global Direct Part Mark Quality Guideline)
